Fun With Flex 1500 and JT-65

CQ CQ

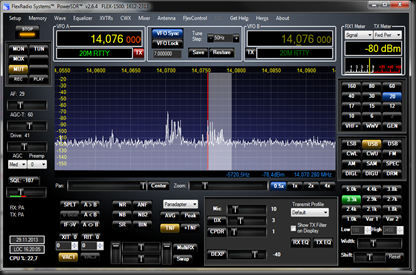

In the passband you can see JT65-HF traffic and a little bit below is very active PSK traffic.

If you have never tried JT65-HF I definitely recommend trying. It is fun mode to work and very effective during tought band conditions. And even better, you never know who answers when you call CQ. With just 5 watts you can work the whole world!

And finally from the pskreporter we can check the propagation. And here we can see that my JT65 transmission is heard in VK and YB land as well.

My quad stack was beaming to NA.

Break Is Over

Finally some activity also in this blog.

Antennas are still the same

No improvements to antenna setup during summer :(

I tore a ligament in my right hand during antenna construction just before summer while building new radiator elements for 12 and 10 meter bands. I guess it is needless to say that my summer antenna construction season was basically over before it even started.

Maybe next year with better luck.

Natural High

Natural High for Antennas

What is the best way to launch antennas to trees?

I have been using a fishing rod and a golf ball for quite some time to sling the antenna wires over trees. That setup has been working reasonably well, but it has been lacking accuracy and a bit more height is always preferred.

Here is the my antenna launcher. I found reasonably cheap used long bow. The bow is 44 pounds strong. I drilled a hole to a golf ball and glued the arrow with strong epoxy. Then I shortened an old baitcasting rod and used hose clamps to connect it to the bow.

Foxhunting With a Twist

Over the past several weeks I have been participating to QRP Foxhunting on Sundays and Mondays. The idea is to find low power QRP stations and “shoot them” by making a QSO. This is a friendly event among QRP enthusiasts in EU. The master of ceremonies is Jos, ON6WJ and he coordinates the EUQRPFOX mailing list and the website. Every now and then foxes and hunters are given special themes such as straight keys, vintage rigs, and most recently stealth antennas.

If you are interested about this activity, please join us by participating the weekly hunts and by subscribe to euqrpfox reflector by following the link below.
Join reflector (mailinglist).
You can find more information from EUQRPFOX website, link below.
EU QRP Foxhunt website
The following is the description of my hunt during the past weekend.

Foxhunting with 92cm magnetic loop

Mission: 60 minutes, foxes on the loose, band 20m, QRP 5 watts, stealth antenna.

My home QTH is full of antennas and squeezing yet another antenna seems to be a very difficult task. To avoid antenna coupling I decided to go mobile and run the KX3 from dedicated battery. I charged the battery overnight so it was ready to go on Sunday morning. I did some map searching about possible high places in near vicinity of my home QTH, but could not figure anything that would have the access route on the right side of the hill and have a short drive by car. And I definitely did not want the hill between myself and all the foxes. Instead for opting a high place I decided to drive to a nearby lake. There is a parking lot next to the lake and cross country skiing tracks leaving to all directions so the place should provide good takeoff to EU. The parking lot is on the north side of the lake, so that should favor the southbound and south west antenna directions even further. Google maps. Lake Ruotasjärvi. View towards south. I checked everything in my home QTH before finally packing the antenna to the van. When I got to the lake I quickly took the antenna from the van, connected the coax to the loop, and hoisted it up to 4 meters. I tied the rod to the mirror of the Vito for keeping it upright. The capacitor provides reasonably accurate and very fast tuning with the tuning rod. Within few seconds I was able to put loop into SWR 1.0, measured with KX3 and 1 watt. Then it was time to go back inside the car and put the earphones on and find the foxes. My first reaction was “Oh sh*t!” There was massive contest splatter all over the bands. But hey, foxhunting is not for fainthearted! I started scanning the bands and by luck I found Zoli (HA2PP) hiding a bit above 14,056. Unfortunately he was in and out from the QSB plus terribly in QRM from contest stations. So, I made a mark for this frequency and continued scanning. What made the scanning process especially cumbersome was the very narrow bandwidth of the loop. The practical < 2 SWR was less than 7kHz so I had to retune the antenna every now and then while going up and down the 20m band. Unfortunately, I could not find anyone else so I decided to wait and see if band conditions would improve and I could work the fox station. And then just like a miracle a strong signal came calling CQ EUQRPFOX just a bit below Zoli. My antenna was already tuned for the frequency so I had a little room to maneuver. With help of KX3 I quickly zero-beated to the fox who was calling CQ. I gave my call twice, and yes, Andy (SP9NLI) came back. I think he was as surprised as I was. He was real S5, and coming loud and clear. We quickly exchanged the reports and antenna information. That QSO really made my day! The remaining time I continued waiting for Zoli. There was strong S9++ contest station exactly on the same QRG, I tried to get his attention in between the CQ robot calling test. However, despite my official fox hunting gloves, I could not give a successful shot at this fox. After the foxhunt, I went to 17m, retuned the antenna and called CQ for few minutes. A couple of stations came back. At this time I was getting a bit cold already despite the beautiful sunshine coming inside the van so I decided to call it a day. Finally I snapped some pictures to my archives. Beautiful weather and very nice field trip on Sunday!

Best 72s and Happy Hunting!

Quad Twins

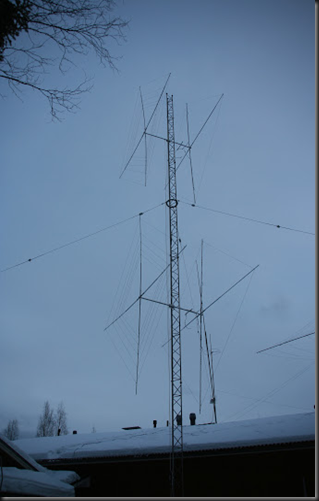

After a lot of work and struggle, with the kind help from local HAM community I managed to raise the quad #1 to its final height. Once the #1 was up I started the construction of the #2 and I finalized the construction on Tuesday. I snapped a picture of the tower on Tuesday afternoon. The weather was grey and temperature was –7C.

Critical Measures

Stacked two identical HRS Quads. Original idea from DK7ZB. Thanks!
5 bands: 10-20.
Feed system, 450 ohm ladder line from shack. Tuner S-match by PA0FRI.
Tower rotating 360 degrees.
Upper quad center height 20m, lower quad center height 9m, stacking distance 11m.

Eznec Model Figures

Eznec calculated performance figures for the stack.
20m

17m

15m

12m

10m

Reasonably good for DX, I think… but always room for some improvement.

Quad vs. Yagi, part 3



On the final day of XT2TT worked them QRP while testing the Quad. Also 9M6 was very loud S9+10 while my quad was pointing to east. Pileup was over 1k wide. I gave my call twice “oh3t/qrp oh3t” and he came back immediately with oh3 oh3 5nn. Very rewarding to test the antenna with good results. I have to admit that I used my old yagi for working Clipperton team TX5K, since I am still a bit hesitant to put kw through my tuner-work-in-progress.

Antenna Bandwidth

Antenna bandwidth is critical aspect of design. I am suffering from snow and icy conditions at least 4 months each year. Resonant antennas can not be designed to be very narrow, since the snow and ice will alter the resonance point and swr significantly.

The yagi design that I have been using as the reference for comparison with the quad can be seen below. I used eznec to calculate the swr and optimized the feed impedance to correspond whet it would look like with the matching stub or for example gamma feed (pick your favorite).

As can be seen from the plot the feed impedance for this 3 el yagi is reasonably low. I used 15 ohm as the feed impedance for drawing this plot.

The reasonable feed swr can be considered to be below 2 for the antenna. The low point for swr < 2 is 14.14 MHz (the upper figure) and the high point for < 2 swr is 14.36MHz. So the < 2 swr range for this antenna is 200kHz. This is fine for example 40m band in EU and plenty for 17m and 24m WARCs but for 20m this is unacceptable.

The point here is not to start optimizing the 3 el yagi but to demonstrate that narrow yagi designs that are optimized for gain and f/b may lead into trouble. Personally I am not a big fan of traditional yagi designs, but prefer the modern OWA designs because of the winter conditions.

Quad and Bandwidth

Traditional quad antennas are equally narrow. One of the main reasons for opting to go with the HRSQ design is the tough winter conditions. The HRSQ is tuner fed, and antenna can be tuned regardless of the snow, ice, and rain. However, the pattern will change as I have already demonstrated in previous analysis.

But lets go extreme. If the resonance point is shifted down and tuner is used to put the antenna into resonance and swr 1.0 the pattern will change.

Plot with 13.5MHz will revert the pattern, the gain is few dB below the nominal, f/b is destroyed, but I can still keep on working and make contacts with full power.

This plot is drawn with 14.5MHz. The pattern has similar characteristics to feeding way below the nominal frequency. The gain is again below the design, but contacts can be made with full power.

Clearly this design due to its nature of feed with tuner and force feeding the antenna has its benefits in tough winter conditions.

HRSQ is clear winner in bandwidth.

Turning Radius

One of the critical design criteria for my tower was to be able to stack the antennas. Stacking has the impact of increased gain and better control over the launch angle. Stacking has also the impact of really pushing down the launch angle below 5 degrees with good gain.

In order to stack antennas one has to avoid the guy wires. High gain 15 and 20m yagis require long booms and in case of my tower setup I do not have the real estate to spread out the guy wires to accommodate long boom yagi stack. Further, I studied the different monoband and multiband yagi options and always run into problem with the guy wires. So I had to optimize the turning radius.

The turning radius for these antennas were calculated for the modeled yagi, HRSQ in diamond and “standard” quad configurations.

Antenna	Turning radius, meters
Yagi	4,22
HRSQ Diamond	4,27
HRSQ square “standard”	2,5

So the monoband 20m yagi has a similar turning radius than the HRSQ in diamond configuration, but 1,7m longer than HRSQ in square configuration. So we have a clear winner.

Summary and Final Words

These three articles were covering comparison between quad and 3 el yagi.

Based on the simulation results I would conclude that very few quad myths actually hold true. Quad is not equal to 3 element yagi. Quad is no more fault tolerant to construction errors than yagi. Yagi is clearly better in all performance related metrics compared to quad.

Yagi is the very clear winner in this comparison!

Quad wins in turning radius, and especially HRSQ wins in antenna bandwidth, but that comes with the extra burden of high power tuner in the feed system.

So, how reliable is this comparison? Based on my experience from the models which I have done and the results from field tests and on-air performance comparisons I was referring earlier, the results are very close to what you will get from these antennas.

Of course, quad and loop antenna enthusiasts may say that it is not fair to compare monoband yagi with multiband quad and declare the yagi as clear winner.

Yes I agree, it is not fair. Monoband yagi is superior antenna, but the quad design is very easy to multiband. The point was to demonstrate that quad is very close to yagi, but not superior. The benefits of quad design comes in the next acouple of sentences. In fact all the results and plots in the articles were from monoband yagi and multiband quad. But the results for quad are what they are, even in the multiband setup. So basically, I would say it is reasonably fair to build a quad that is close to 3 el monoband yagi, and get 4 bands for “free” without compromise in performance! It is very fair!

Thanks for reading!

Quad vs. Yagi (part 2)



In my previous post I was discussing about absolute Quad vs. Yagi performance figures. I think it is clear from the analysis that Quad does not beat a three element yagi when installed over real ground. Now.. why does quad is claimed to work so much better? Oftentimes I hear claims that Quad is more tolerant to construction errors. So lets have a look…

Quad Behavior, Construction errors

For reference the original design in free space below.

Impact of boom Length

Boom + 30cm	Boom +60cm

Boom -30cm	Boom -60cm

Lengthening  the boom has very little impact, but making the boom too short in such tightly coupled design starts disrupting the front/back. The gain figures remain fairly constant and within 0,2dB range.

Element length errors.

This quad design is based on HRS model, where the radiator is fed with ladder line and tuner is required. So I keep the radiator same and modify the resonant reflectors.

Reflector Loop -25cm	Reflector Loop -50cm

Reflector loop +25cm	Reflector Loop +50cm

So the reflector loop measurements significantly more critical than the boom length. The used 25cm measurement error sound fairly large, but trust me, it is very easy to make if you do not for example use wrong velocity factor when you design the antenna.

Yagi Behavior, construction errors

Again, the original design in free space for reference.

Boom Length Construction Errors

Director Placement

Director +30cm	Director +60cm

Director +30 Reflector -30	Director +60, Reflector -60

As expected when the length of the boom is increased the gain increases.

Lets next make the boom shorter and see simulate what happens.

Director -30cm	Director -60cm

Director –30cm, Reflector +30cm	Director –60, Reflector +60

I would call this a very robust design. In normal construction tolerance the placement in the boom has only few dB difference. So as long as reasonable common sense is used in construction tolerance yagi is no worse than quad.

Antenna Tolerance To Element Length Errors

Lets first start shortening the elements.

Director -20	Director -40

Director –20, Reflector -20	Director –40, Reflector -40

And now lets make elements a bit longer

Director +20	director +40

As expected lengthening the director turns it quickly a reflector disrupting the pattern completely. It depends completely on the yagi design how critical this measurement is. In this design the tolerance is reasonably small, so you better learn to measure or at least fail on the short side.

Reflector +20	Reflector +40

Unlike the director the reflector is reasonably tolerant to impact of shortening the element.

Summary of Construction Error Tolerance

The myth: “Quad is more tolerant to construction errors than Yagi”.

I would conclude based on these two antennas compared side by side that there is no truth behind the claims for quad being more tolerant to errors than yagi.

Of course by making yagi director too long it is reasonably easy to disrupt the pattern completely, and even reverse the beam, but that is an extreme case. Both designs are reasonably tolerant and if you can measure with accuracy of 5cm and you have the material velocity factors, including the material thickness taken into account when designing the antennas, the measurements are not that critical. Accuracy of few centimeters is well in the limits of tolerance and capability of average builder.

I think the main reason for people considering quad being more tolerant is the number of bad yagi recipes out there and builders using just wrong materials. Good yagi design is also tolerant to tapering and material thickness variation. I checked this yagi model with –50% and +100% material thickness with little impact to pattern.

Part 3 and final conclusions still to follow
